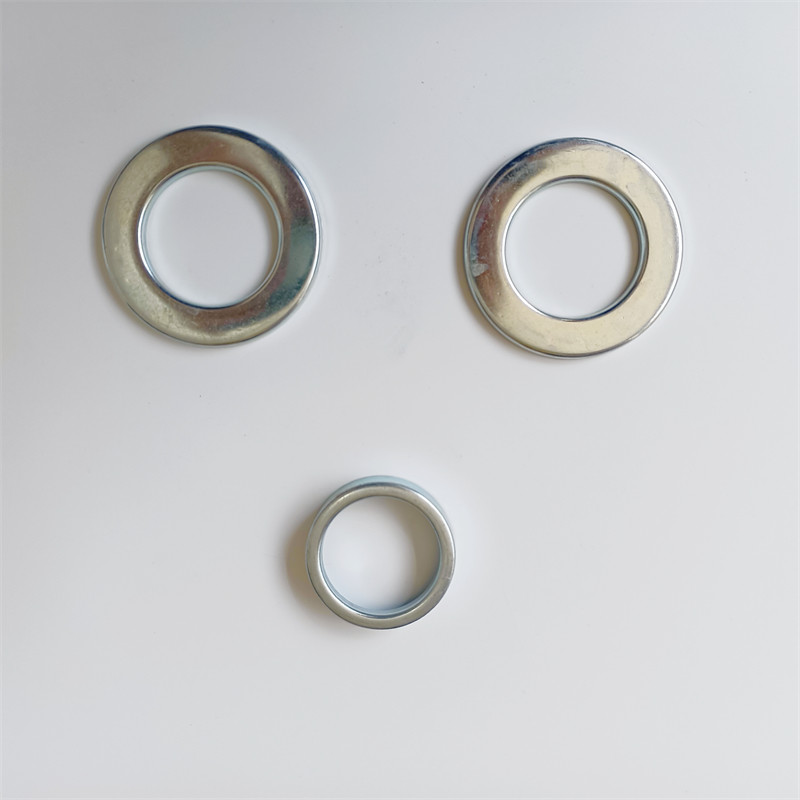

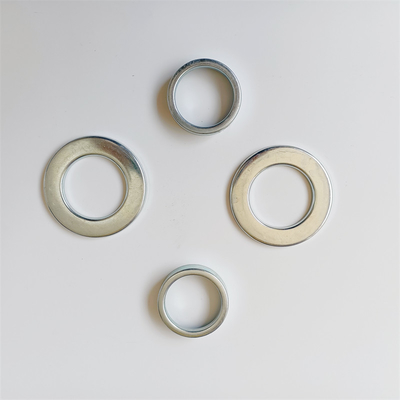

Deep Drawn Parts OEM Bending Sheet Metal Stamping Part
Deep drawing stamping is a special stamping method. The principle is to apply external force to plates, strips, pipes and profiles by means of presses and dies to cause plastic deformation or separation, so as to obtain the required shape and size. Pieces (deep drawing parts), metal drawing parts.
What are the common problems with the stretching die?
The die wall of the drawing part is broken, which often occurs on the side wall near the corner of the square cylinder and near the radius of the die (rcd). In the mold design stage, it is difficult to predict. That is, an inverted W shape, and a cross grid at 45° to the drawing direction appears above.
Cracks appear in the corresponding parts of the punch shoulder of the metal drawing part. Due to the insufficient strength of the material, this defect occurs when the deep drawing load reaches the material breaking load. The defective part occurs at the corresponding part of the punch shoulder R (at rp), that is, the part closer to rp than the impact line. Because the impact line of the broken part is different from other parts, it can be observed and checked to solve the corresponding place.
Product parameters:
| products | Deep Drawn Parts OEM Bending Sheet Metal Stamping Part |
|
Material
|
Steel , Iron ,Stainless steel, Aluminum, Brass, Copper etc.
|
|
Process
|
Stamping, Deep drawing, Laser cutting,Bending, Welding, CNC etc
|
|
Surface treatment
|
Zinc plating, Nickel plating, Powder coated , Paint ,Brushed, Polishing, Anodized , Hot dip galvanizing etc .
|
|
MOQ
|
100pcs
|
|
Size
|
Customized Size
|
|
Certificate
|
ISO9001:2015
|
|
Design
|
3D/CAD/Dwg/IGS/STP
|
|
Package
|
Bubble Bag+ Carton+ Wooden Box
|
|
Application
|
Metal part in all fields
|
|
Service
|
Customize ODM OEM
|
